Add new scrollbar​

The old scrollbar named CustomScrollbar in @grafana/ui has been deprecated and replaced by ScrollContainer. Relevant Grafana PR: #96331

The new ScrollContainer only works for Grafana v9.5.0 or later. Earlier versions will still use the old CustomScrollbar.

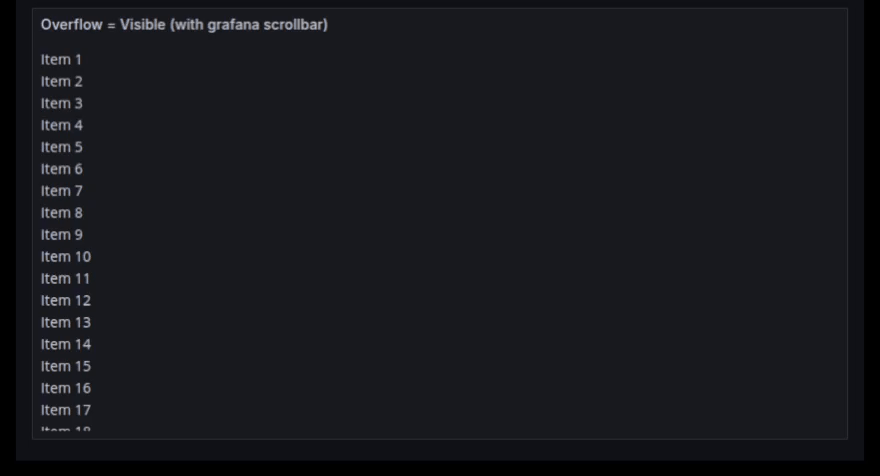

Old CustomScrollbar:

With old CustomScrollbar

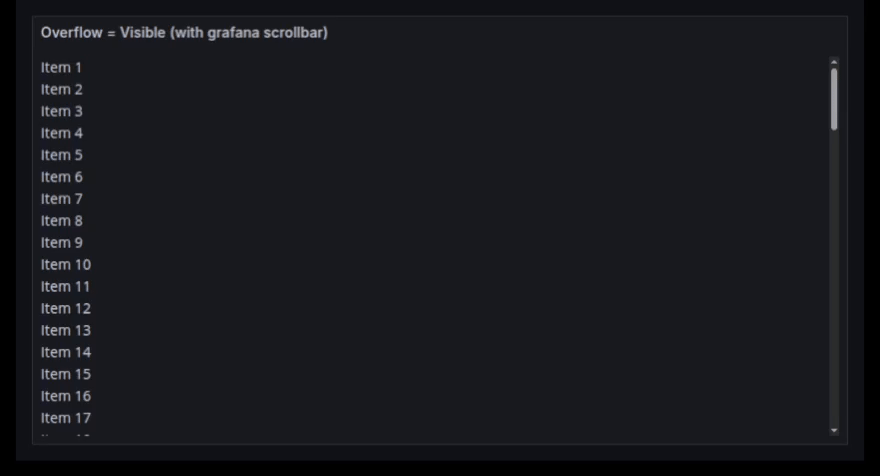

New ScrollContainer:

With new ScrollContainer

The new scrollbar has some shading at the top and bottom of the container when the content is scrolled.

There isn't an option to remove the shading, but the scrollbar is just (excluding the shading):

:host > div {
  overflow: auto; /* This is overwritten by the Overflow option value */
  scrollbar-width: thin;
}

So to have a scrollbar similar to Grafana's scrollbar without the shading. Set the Overflow option to Auto and add the following CSS:

:host > div {
  scrollbar-width: thin;
}

Adjustable code editor height​

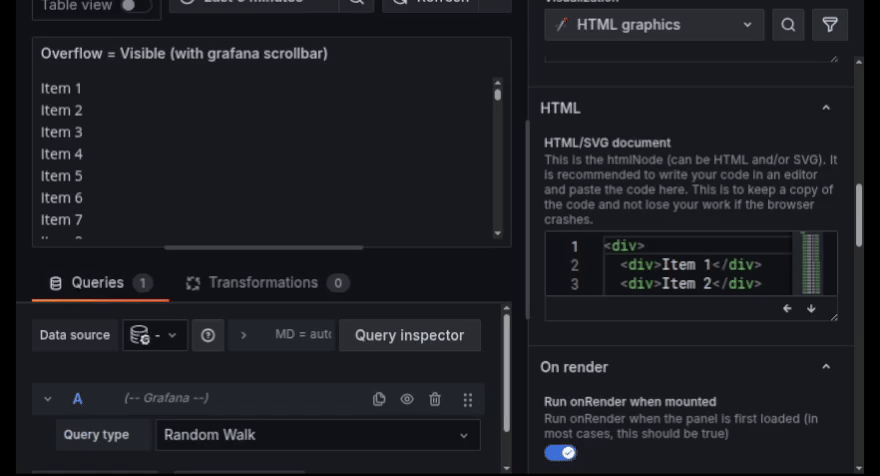

The code editor height can now be adjusted/resized with the buttons or by dragging the bottom right corner of the code editor.

Adjustable code editor height

Sync Custom properties with the type declarations in onInit and onRender​

The type hints in the onInit and onRender code editors are now synced with the custom properties defined in the Custom properties option. Changes made to the custom properties will automatically update the type declarations in the code editors.

Grafana version v8.4.0 to v9.1.X has some issues with dynamically updating the type declarations in the code editor. Which is fixed in Grafana v9.2.0. For these versions, the type declarations will only be updated when the code editor is reloaded (f5).

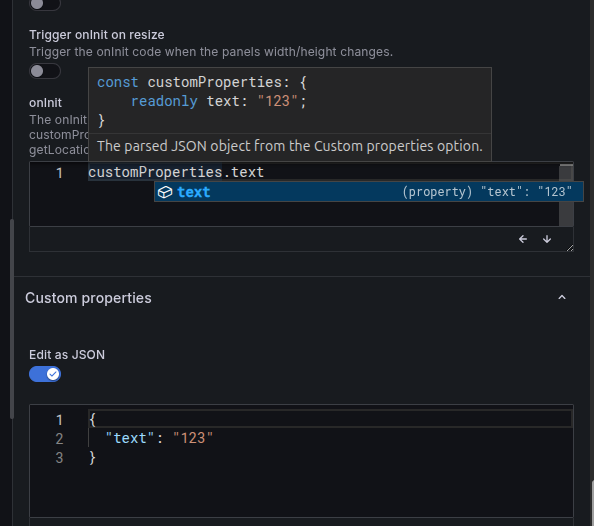

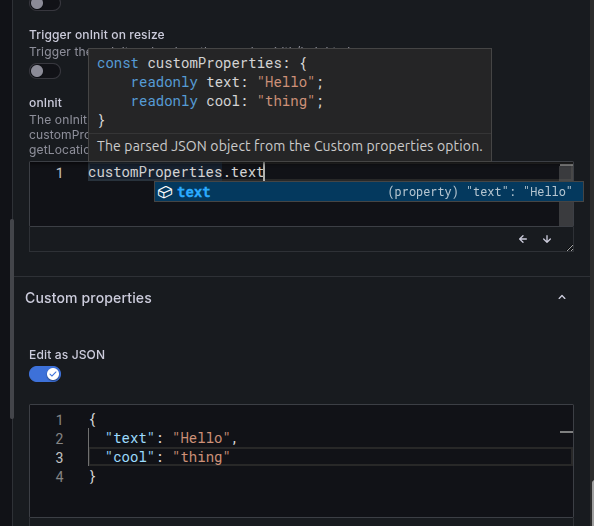

Dynamic type declaration change1 Dynamic type declaration change2

Minor tweaks​

  • The code editor doesn't wait for the type declarations to load before loading the code editor. (Faster loading).
  • The code editor doesn't cause layout shift once the code editor is loaded. (Less jumping around when the code editor loads).
  • The code editor has a smaller default height making scrolling easier.
